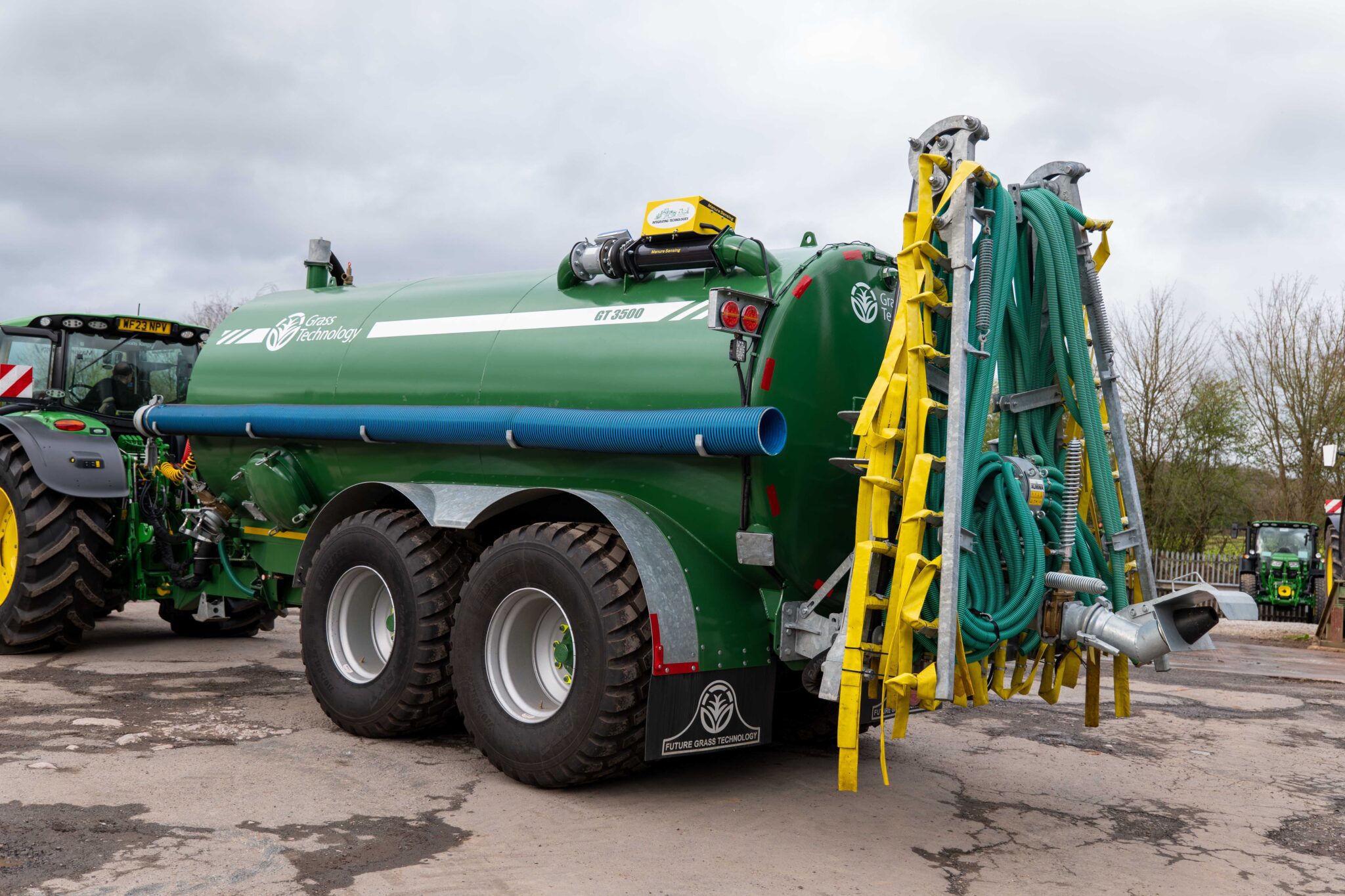

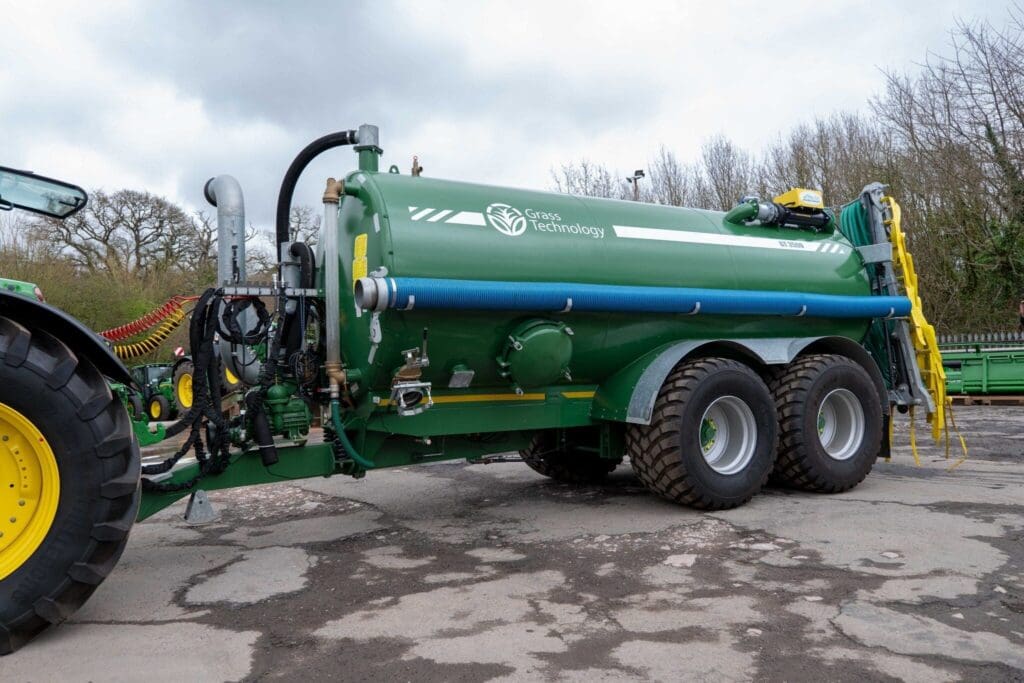

GT3500
GT3500

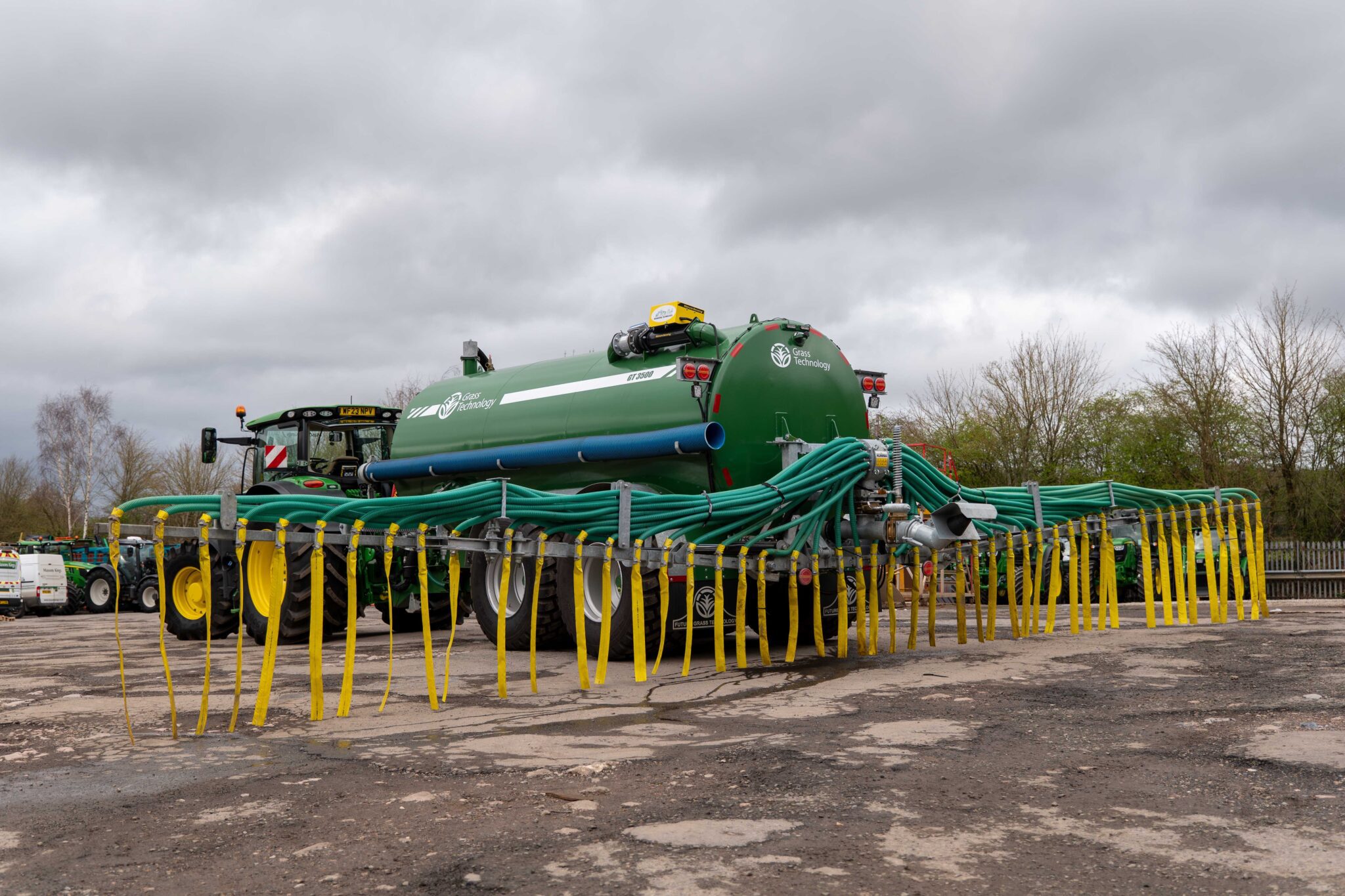

Grass Technology’s Slurry Spreaders – 7.5m, 10m & 12m Dribble Bars:

  • 7.5m, 10m & 12m Wide – The total dribble bar weight is only approx. 450/595/720kg.
  •  Bomech Alrena Macerator with 12 cutting knives makes short work of any solids passing
    through, even bits of wood and plastic! Also, self-sharpening, and with automatically
    tensioned spiral springs to ensure maintenance & parts replacement are minimal. Even if run
    dry the macerator ALRENA’S precision tolerances ensure super low running temperatures. A
    5” Slurry Input Connection without taper and +40% air passage design ensures top efficiency.
  •  Only one set of double acting hydraulic spool is needed as you operate the dribble bar from
    the comfort of the cab using our simple control box. – When raising or lowering the booms,
    an alarm will alert when the movement is complete.
  •  The booms are fabricated using laser-cut folded steel sheet, incredibly light without
    compromising on strength.
  •  Full spring breakaways (7.5m) and Pressure relief valve breakaways (10m and 12m) are fitted
    and function on both Dribble Bars when in use.
  •  All Grass Technologies low emission slurry spreading equipment is grant eligible.
  •  We use high-quality LED lighting on your Dribble Bar to make sure you are safe and seen.

Description

GRASS TECHNOLOGY 7.5m Dribble Bar:
– Stone trap on dribble bar.
– Splash plate out the rear of dribble bar.
– 2 x fill ports on dribble bar for loading to the rear.
– Alrena macerator with 12 double edged knives & 5” Slurry Input Straight Connection.
– Knives are also auto spiral spring tension & the design is efficient +40% air passage.
– Only 450kg, light but strong & fully Galvanised too.
– Grass Technologies booms are fabricated using laser-cut folded steel sheet.
– Chassis mounted for increased strength.
– Spring breakaway in operation position.
– 1 x (D/A) Spool ONLY Required using our simple in Cab Control Box.
– Full LED Lighting to ensure your visibility and safety when travelling on Road.

GRASS TECHNOLOGY 10m Dribble Bar:
– Stone trap on dribble bar.
– Splash plate out the rear of dribble bar.
– 2 x fill ports on dribble bar for loading to the rear.
– Alrena macerator with 12 double edged knives & 5” Slurry Input Straight Connection.
– Knives are also auto spiral spring tension & the design is efficient +40% air passage.
– Only 595kg, light but strong & fully Galvanised too.
– Grass Technologies booms are fabricated using laser-cut folded steel sheet.
– Chassis mounted for increased strength.
– Pressure Relief Valve breakaway in operation position.
– 1 x (D/A) Spool ONLY Required using our simple in Cab Control Box.
– Full LED Lighting to ensure your visibility and safety when travelling on Road.

GRASS TECHNOLOGY 12m Dribble Bar:
– Stone trap on dribble bar.
– Splash plate out the rear of dribble bar.
– 2 x fill ports on dribble bar for loading to the rear.
– Alrena macerator with 12 double edged knives & 5” Slurry Input Straight Connection.
– Knives are also auto spiral spring tension & the design is efficient +40% air passage.
– Only 775kg, light but strong & fully Galvanised too.
– Grass Technologies booms are fabricated using laser-cut folded steel sheet.
– Chassis mounted for increased strength.
– Spring breakaway in spreading position (Last 1.5m, adjustable Ifor Williams)
– 1 x (D/A) Spool ONLY Required using our simple in Cab Control Box.
– Full LED Lighting to ensure your visibility and safety when travelling on Road.
