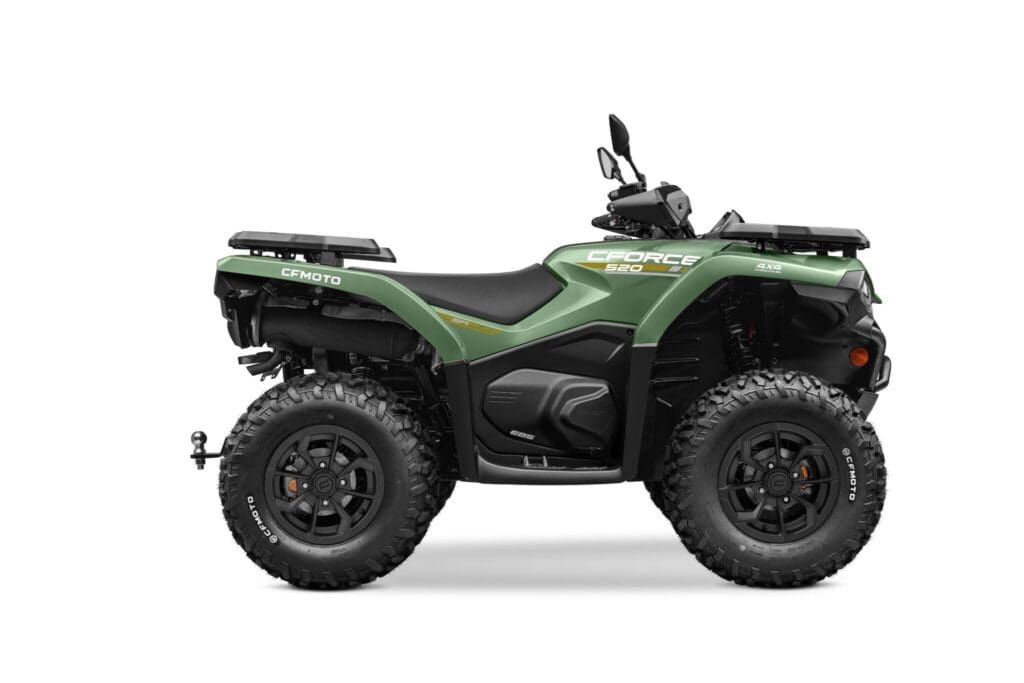

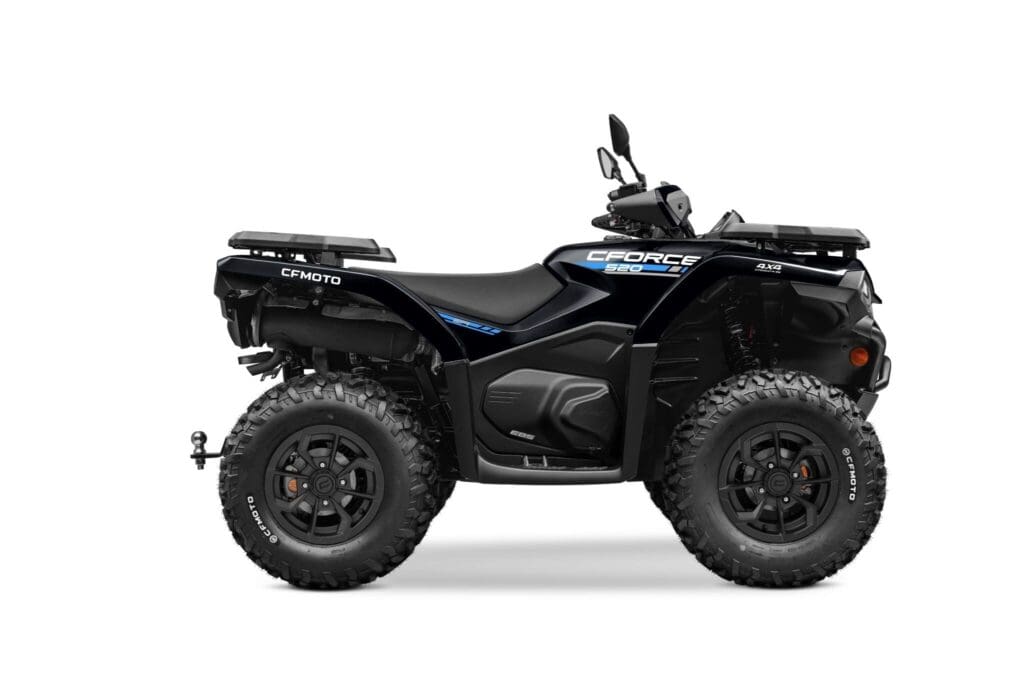

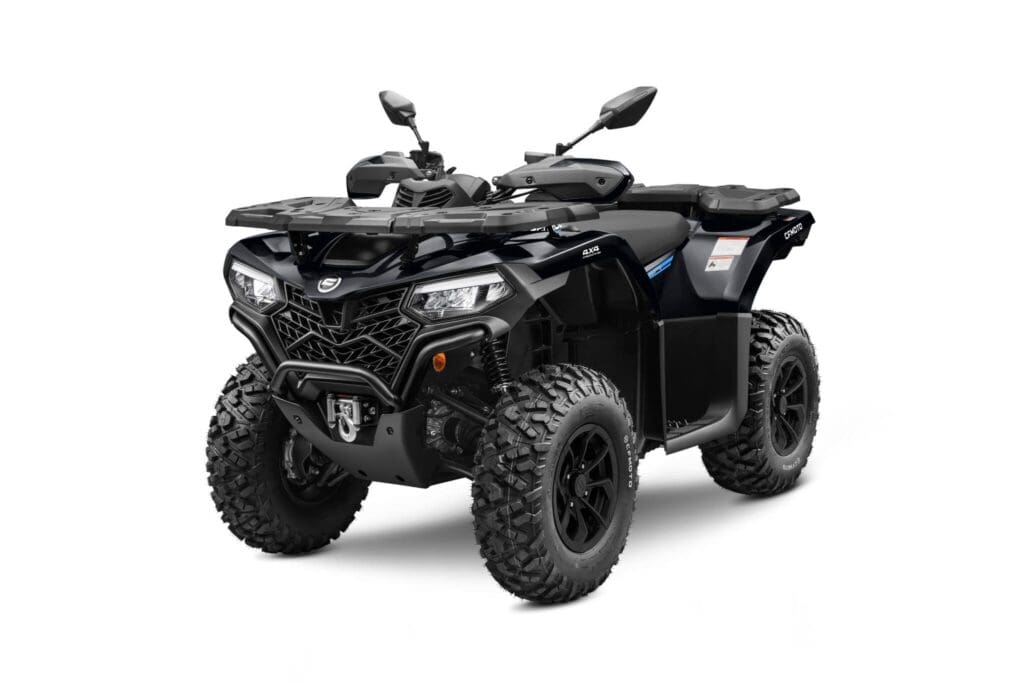

CFMoto CForce 520 ATV

Description

With its low weight and compact footprint, ease of maintenance, excellent durability, premium standard equipment and excellent price, the CFORCE 520 has become a very impressive mid-size ATV.

The latest evolution of mighty CFORCE 520 now includes:

• Improved rider ergonomics
• New exterior design
• 25% tighter turning radius over previous model
• Lighter weight but stronger frame
• Overall noise and vibration reduction
• Heatshield improvement on lower leg area
• Higher air intake position
• Bigger fuel tank
• More storage space
• Arched front A-Arms for increased ground clearance

ATV Dimensions

• Length x Width x Height: 2186×1157×1210 mm
• Wheelbase: 1288 mm
• Minimum Ground Clearance: 249 mm
• Minimum Turning Diameter: 5.6±0.5 m
• Dry Weight: 344 kg
• Towing Capacity: 802 kg
• Fuel Capacity: 16.5 L

Upgraded for better performance and comfort

The 2023 CFMOTO CFORCE 520 includes lots of new upgrades to improve the performance and comfort compared to the previous model. The turning circle is 25% tighter thanks to a new steering knuckle design. New engine mounts help to reduce vibration. The fuel tank cover is removable and does not require any tools. Upgraded racks have an increased load capacity (30kg front and 60kg rear) and feature CF-connect to easily install OEM accessories. The rear storage compartment is 2.5L bigger. The optimised ergonomic riding position makes the ride more comfortable in both standing and seating positions. There is a new exhaust design for reduced noise and exhaust heat. The new chassis is 10% lighter and 30% stronger than previous model.

The new suspension provides 26% more wheel travel and increased ground clearance, initial travel is softer for increased comfort and becomes stiffer for better performance with more aggressive riding. There is a new handlebar design for easier steering with the tuned EPS system and new anti-slip handlebar grips. The new seat is 40% thicker providing better support and comfort. The new dashboard design is highly intuitive and can be paired with the rider’s phone by Bluetooth. The hitch receiver on the new tow-bar is bolted to the chassis rather than welded, which provides an increased load capacity of 802kg and is easily replaceable. The new front grill provides more effective airflow and delivers better cooling performance in conjunction with a new bigger radiator fan.
